Pushed
Snow plough waggon
Snow plough K20-Vario
The snow plough waggon is pushed by a locomotive and all hydraulic functions are driven by an electric motor. The hydraulic functions are controlled via the portable control console in the locomotive cab. Directions changes of the snow plough waggon can be performed by means of a rotating stamp (rotation is possible up to 25 per mill).
.
Technical Data
| WAGON | |
| Track | 1’000 mm |
| Axle distance | 3’500 mm |
| SNOW PLOUGH | |
| Clearing width | 3’300 mm |
| Clearing height | 1’500 mm |
| Lifting height of plough | 360 mm |
| A snow blower can also be mounted instead of a wedge-shaped plough. |
Complete vehicle
| Length | 9’180 mm |
| Width | 2’200 mm |
| Height | 2’600 mm |
| Weight | approx. 11’350 kg |
Contact us
Product Manager Railway Systems
Send us your enquiry electronically by email or contact us right now by phone: +41 (0)34 491 81 11

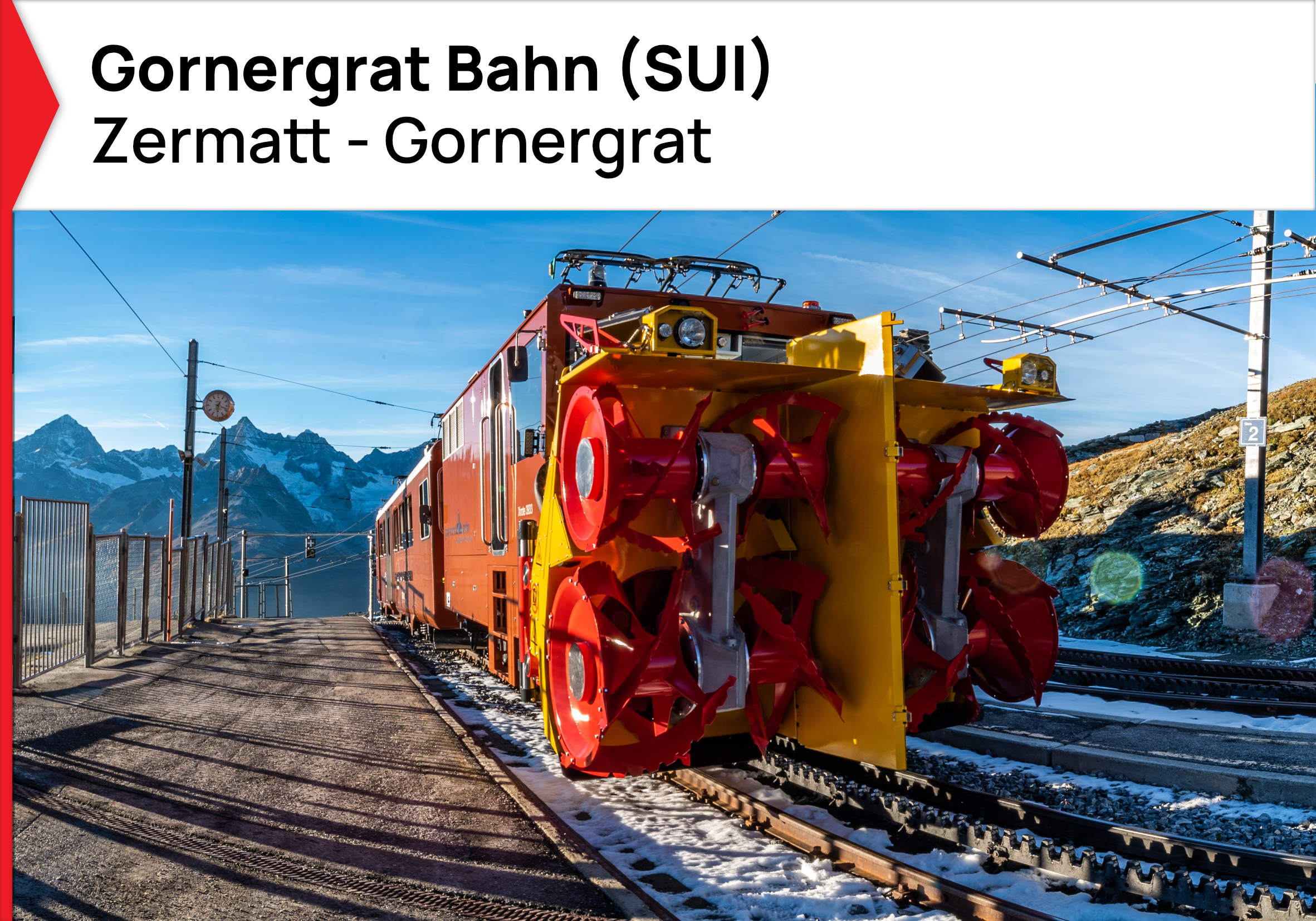

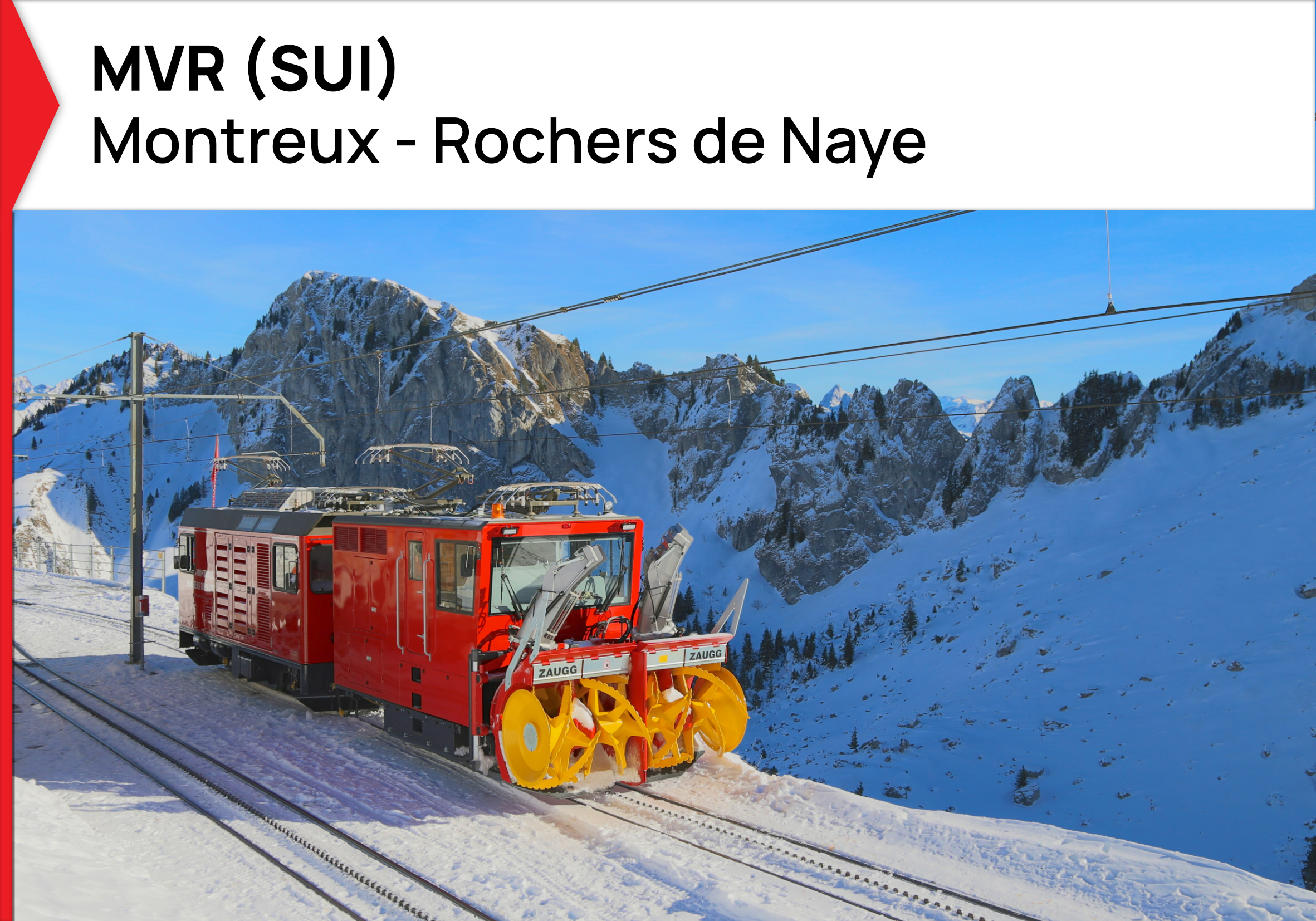

GALLERY - realized projects service vehicles
