Schneefrässchleuder MONOBLOCK Mobl 380

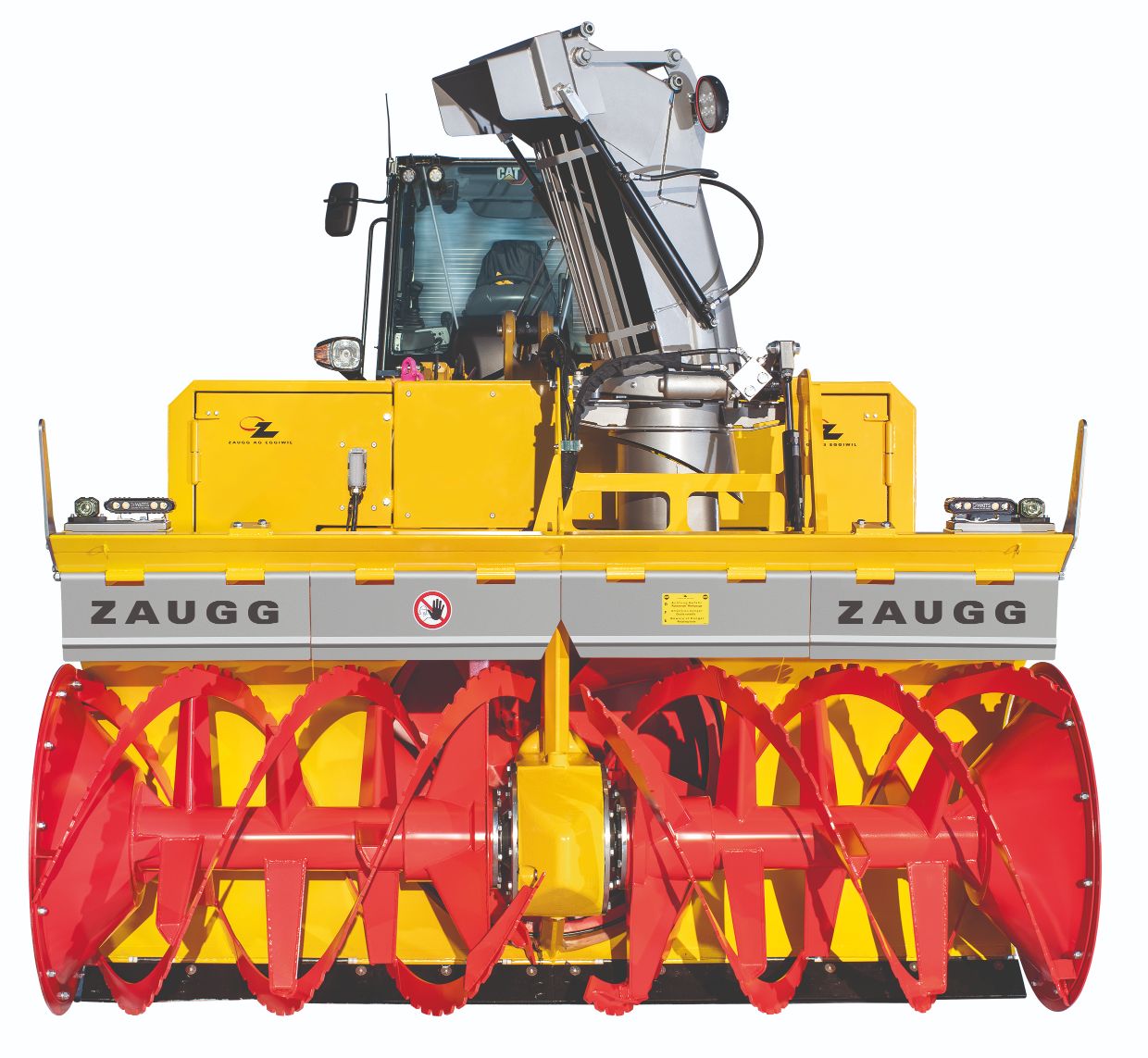

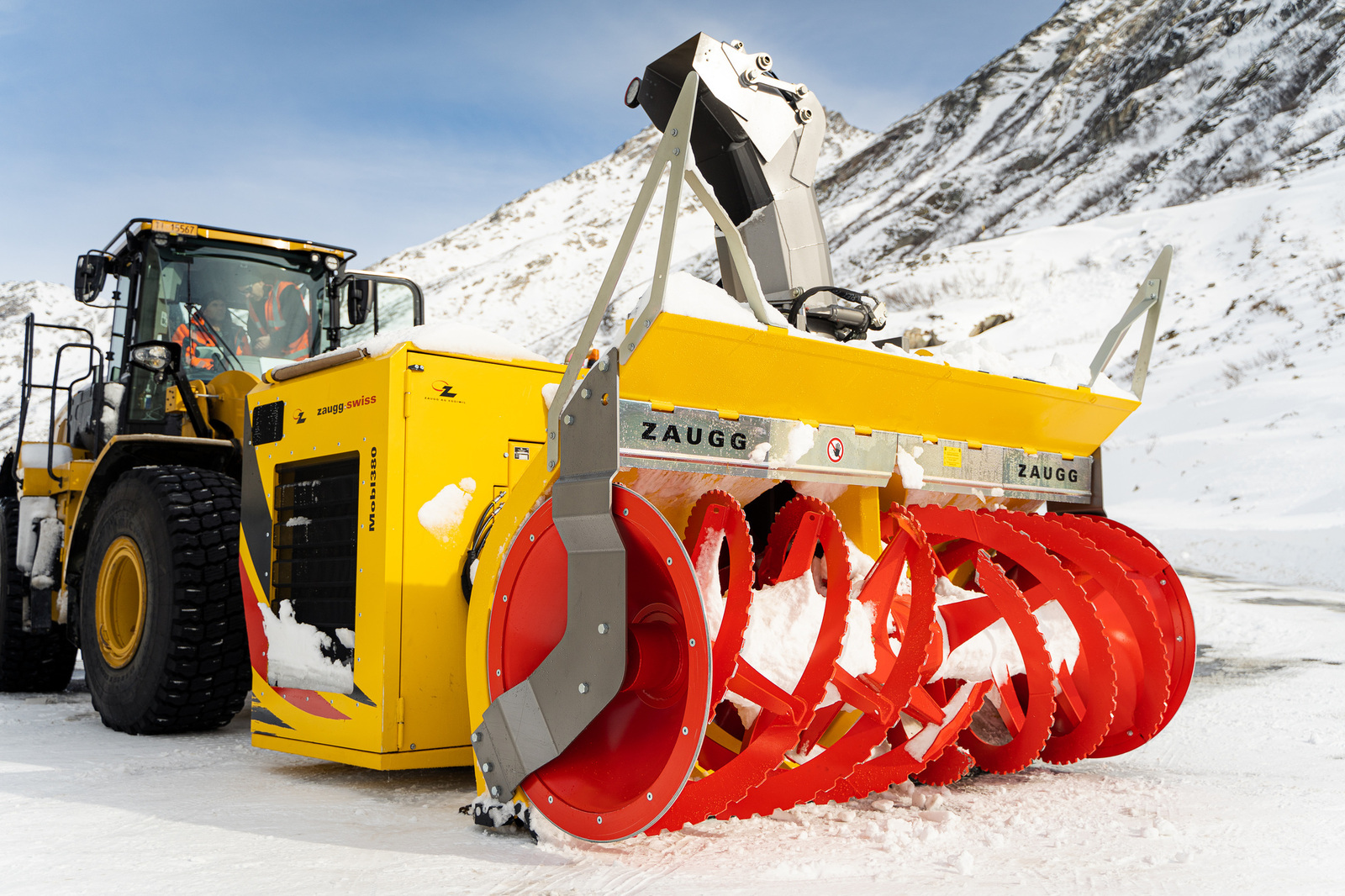

Snow blower MONOBLOC Mobl 380

The Monobloc snow blower is autonomous, compact and meets the current Euro stage V exhaust emission standards. The machine can optionally be equipped with a radio remote control or fixed connecting cable and is operated conveniently with the included joystick and display. Wheel loaders that meet the minimum static tipping load requirement are employed as carrier vehicles. Therefore, they can also be used during the winter break. The articulated steering of the wheel loader ensures great mobility, enabling use even in cramped conditions, e.g. in narrow, deep cuttings.

INFORMATION

Output

280 kW / 380 PS

Cutter Type

SF 110-125-L-… HT

TECHNICAL SPECIFICATIONS

Monobloc Snow blower Mobl 380 mit SF 110-125-L-… DS KS
Drive
Engine Mercedes-Benz
Type OM936LA.E5-1
Exhaust emission standard EU  Stage V / US EPA Nonroad Tier 4
Cylinders 6 in line (7.7 l cubic capacity)
Output 280 kW (380 PS) / 1550 Nm
Diesel fuel tank app. 245 litre
Snow blower unit SF 110-125-L-… DS KS
Working widths 296 / 330 cm
Cleaning height 170 cm
Cutter reels ∅ 110 cm
Impeller ∅ 125 cm
Protection Shear pin coupling / automatic cut-out clutches
Ejection chutes 2-flap /
or with a standard revolving impeller casing
Ejection range up to 35 m (depending on the snow)
Clearing capacity up to 3000 t/h (depending on the snow)
Weight
Total weight up to 6200 kg (depending on the model)
Necessary static tipping load of the wheel loader
Minimum up to 11500 kg (depending on the ejection)
